Material Handling System



Smart Warehouse
For Automotive Body-in-White


This is a specialized smart warehouse designed for the storage and handling of unpainted vehicle skeletons in the automotive manufacturing industry
Key Features
  • Production Line Integration
    Seamless integration between the warehouse and automotive production lines
  • Scalability
    Material handling, storage, and retrieval are all completed by automated systems working in concert
  • Fully Automated
    Space and software optimization algorithms are reserved for future growth in storage units

STANDARD WAREHOUSE CONFIGURATION


For a specialized smart warehouse designed for storing and processing white bodies (unpainted body frames) in the automotive manufacturing sector, the standard configuration generally comprises : Racking systems 、Materials Handling Equipment & Inventory Management Software.During actual deployment, we tailor the settings of stacker cranes and AGVs to match the exact dimensions and weight of the white bodies.

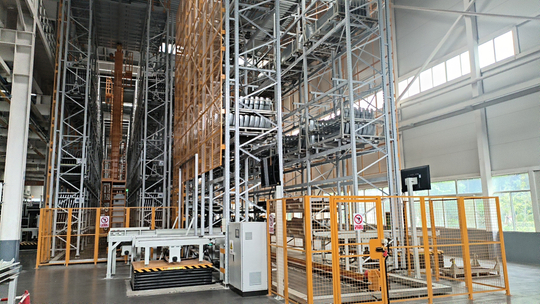

Smart Warehouse for Automotive Body-in-White


Smart Warehouse for Automotive Body-in-White


CONFIGURATION REFERENCE GUIDE

  • Stacker Crane
    新增页签
    Functional Modules: High-performance servo motor drive system, laser positioning system, safety protection system, wireless communication module, automatic deviation correction system.

    Module Style: Double-column straight rail stacker crane, equipped with telescopic forks.

    Core Parameters:
    • Maximum lifting height: 25 meters
    • Maximum transverse speed: 180 meters per minute
    • Maximum lifting speed: 120 meters per minute
    • Maximum load: 2 tons
    • Positioning accuracy: ±3 millimeters

    Configuration Basis:
    The weight of car frames typically does not exceed two tons. This configuration ensures that the stacker crane can quickly and accurately retrieve white bodies in high-bay warehouses
  • Automated Guided Vehicle (AGV)
    新增页签
    Functional Modules: Laser navigation system, automatic obstacle avoidance system, wireless communication module, automatic charging system, load detection system.

    Module Style: Trolley-type AGV with an adjustable height platform.

    Core Parameters:
    • Maximum Load Capacity: 2 tons
    • Travel Speed: 1.5 meters per second
    • Positioning Accuracy: ±10 millimeters
    • Operating Time on a Single Charge: 10 hours
    • Recharge Time: 2 hours

    Configuration Basis:
    The AGV configuration ensures efficient and safe handling of the body-in-white within the warehouse, while the automatic charging system guarantees round-the-clock operational capability of the AGVs.
  • Roller Conveyor
    新增页签

    Note: For the storage of white bodies, the roller conveyor is primarily used for the auxiliary handling of lightweight components or smaller white body sections.

    Functional Modules: Motor drive system, variable frequency speed control module, safety protection system, wireless communication module.

    Module Style: Straight roller conveyor equipped with a variable frequency speed controller.

    Core Parameters:

    • Conveying Speed: 0.5 to 5 meters per minute
    • Load Capacity: 1 ton
    • Conveyor Length: Customized according to warehouse layout


    Configuration Basis:

    The configuration of the roller conveyor meets the need for smooth transmission of lightweight components, and the variable frequency speed control module provides flexible control over conveying speed.

  • Chain Conveyor
    新增页签

    Note: If the warehouse design includes inter-floor or long-distance transportation, the chain conveyor is an ideal choice.

    Functional Modules: Chain drive system, tensioning device, safety protection system, wireless communication module.

    Module Style: Plate chain conveyor equipped with a tensioning device.

    Core Parameters:

    • Conveying Speed: 0.5 to 3 meters per minute
    • Load Capacity: 2 tons
    • Conveyor Length: Customized according to warehouse layout


    Configuration Basis:

    The configuration of the chain conveyor is suitable for continuous transportation between floors or over long distances, enhancing material handling efficiency. Given that the chain conveyor may be used to transport larger sections of white bodies, its load capacity has been adjusted to match that of the AGVs and stacker cranes.

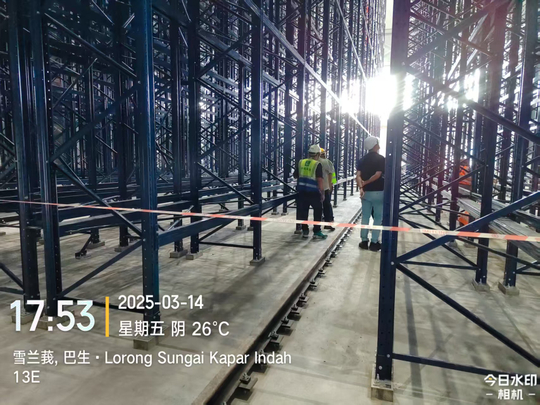

  • High Bay Racking System
    新增页签

    Functional Modules: Uprights, beams, pallet supports, anti-fall nets, aisle optimization system.

    Module Style: Deep lane heavy-duty upright racking with hot-dip galvanized steel material.

    Core Parameters:

    • Height: 25 meters
    • Depth: 1.2 meters
    • Load Capacity: 2 tons per level
    • Unit Width: Customized based on the dimensions of the white body



    Configuration Basis:

    A high-density storage solution, the use of hot-dip galvanized material ensures the durability and safety of the shelving, while the deep-lane design increases storage efficiency.
